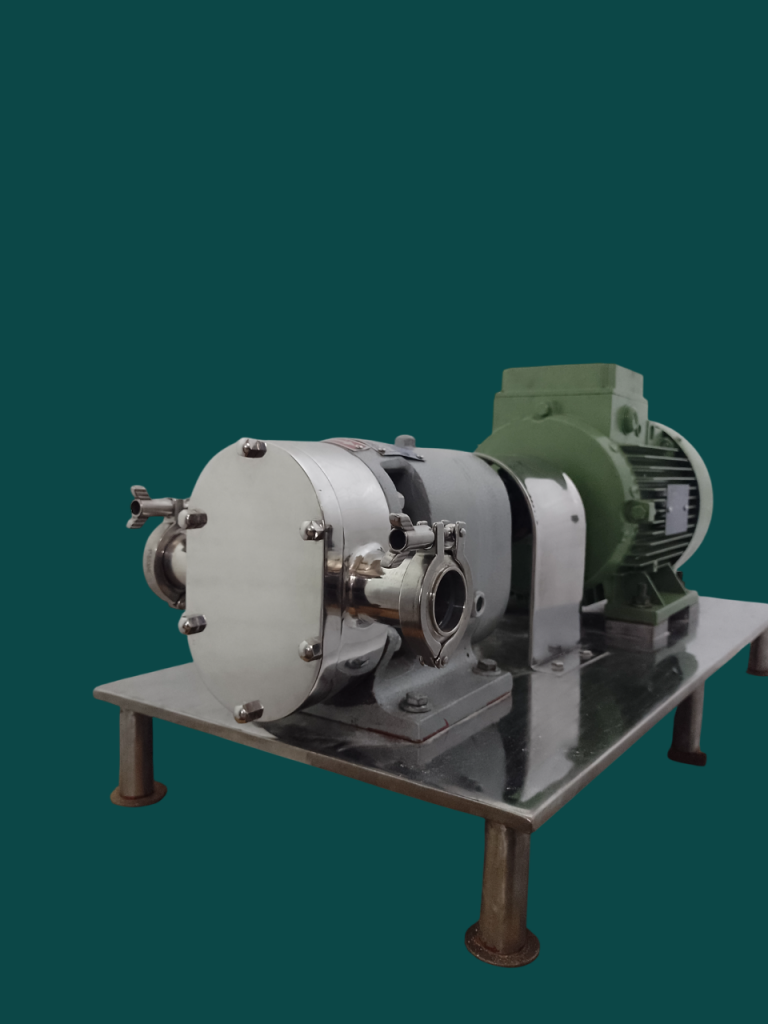

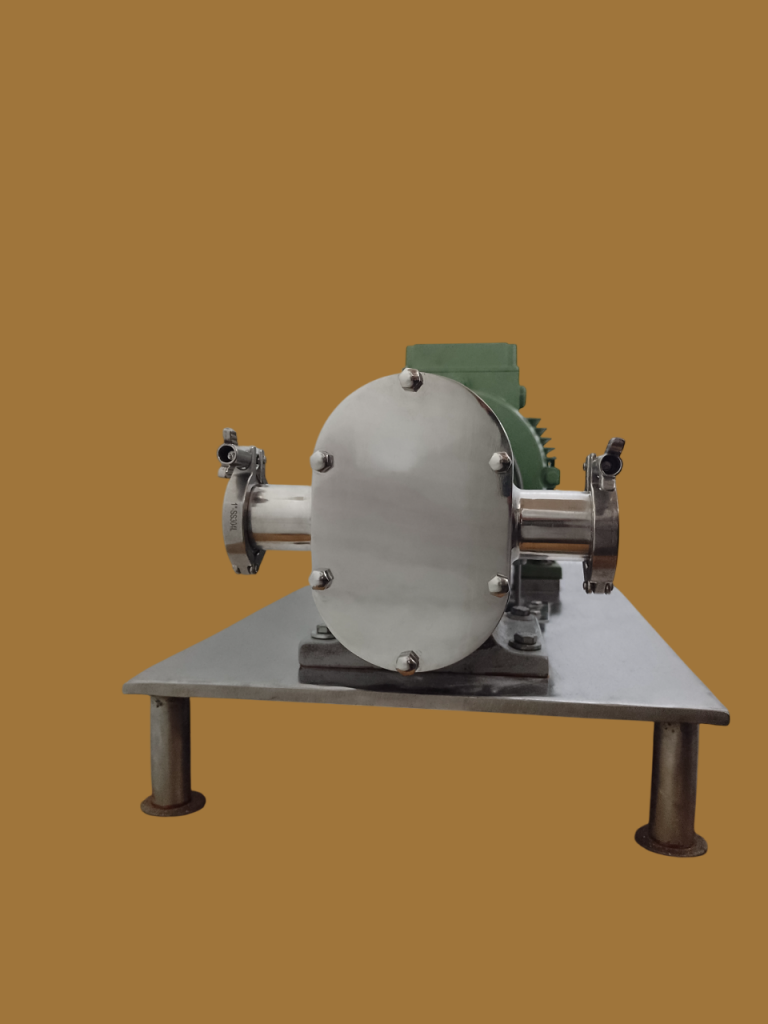

S.R. Positive Rotary Lobe Pump (trilobe)
Rotary Lobe Pump (Trilobe) Manufacturer, Exporter in India
All Parts in contact with the product liquid are made form AISI-316 quality stainless steel alloys to meet exacting requirements of hygienic standard.

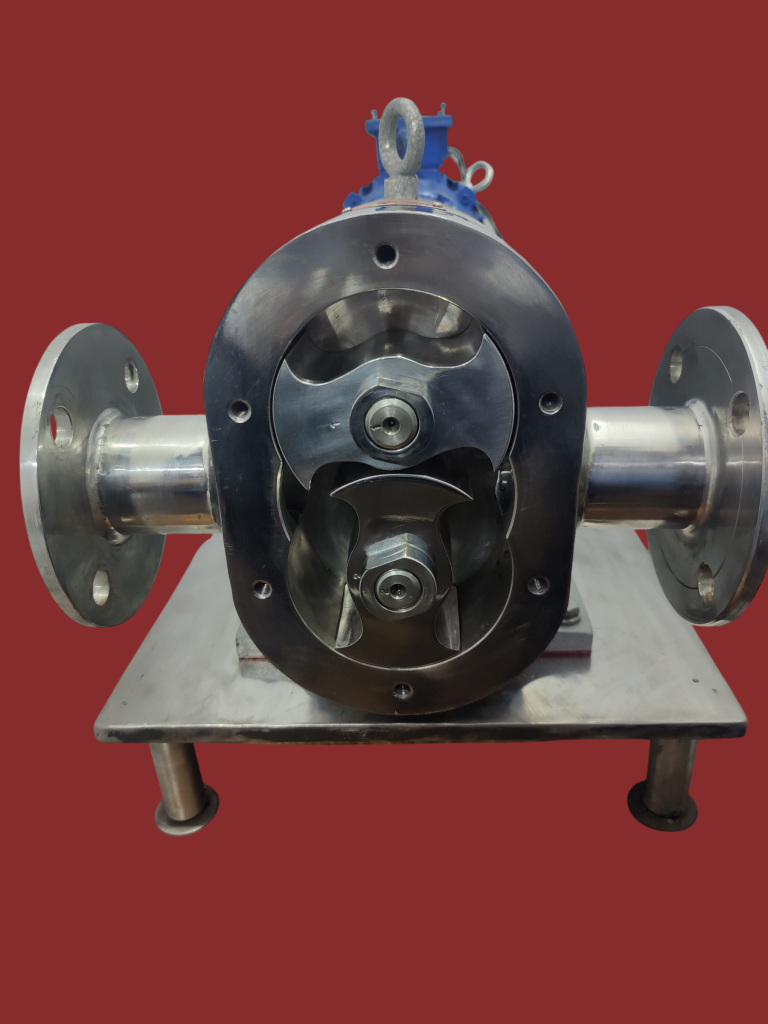

- As the rotors start to rotate, an expanding cavity is formed by rotation of the lobes which creates a vacuum at the inlet port, drawing liquid in pumping chamber
- The product liquid is carried between the lobes and positively displaced, thereby sealing itself against the internal faces of the pump casing.
- The other lobe chamber is filed with the product liquid and about to commence it’s discharge cycle.
- Finally the product liquid is forced or pressed out of discharge port of the pump in continuous smooth flow and pressure generated by the meshing of the lobe rotors.
| Model | Port Connection | Max head. | Max. Speed R. P. M. | H. P. | Pump Max Capacity L. P. H | |
|---|---|---|---|---|---|---|
| Bar | Psi | |||||
| SRL 1 | 25 mm (1″) | 4 | 60 | 700 | 2 | 6000 |
| SRL 1.5 | 38 mm (11/2″) | 6 | 85 | 440 to 700 | 3 | 10000 |
| SRL 2 | 50 mm (2″) | 8 | 142 | 400 to 700 | 5 | 12000 |
| SRL 3 | 25 mm (3″) | 10 | 155 | 300 to 510 | 7.5 | 36000 |
- Built – in – With relief Valve : This is also fully interchangeable. But the adjustable automatic spring loaded pressure relief valve provides a definite means of protection.
- Jacketed front cover : Jacketed rotor case front cover suitable for heating & cooling with any medium (Water, steam, oil etc. A built-in-relief valve cannot be used if this type of front cover is fitted.)
| Model | Port ConnectionMax headMax Speed R.P. M.H.P.Pump Max Capacity L.P.H. |
|---|---|
| Bakery Product | Butters, flavourings, frostings, fruit fillings, fats & Oil, sweeteners, yeast slurry. |
| Beverage Products | Beer, wort, yeast, alcohol, wines, soft drink, fruit concentrates & fruit drinks. |
| Chemical Products | Acetone, Adhesive, alcohol, alkyd resins Ammonia, amylacetate, barium Sulphate, benzene. Canning Products |
| Canning Products | Potato salad, baby foods, soups, salad dressing, tomato ketchup, fruit juice, pumpkin slurry, cream style vegetable,jams, jellies and mayonnaise. |
| Confectionery Products | Sugar syrup, cream filling, chocolate mixture, choco- milk |
| Cosmetic Products | Face cream and lotion, lipstick, hair dye, essential oil, shampoo, shaving cream, toothpaste. |
| Dairy Products | Butter, butter milk, milk cream, milk condensed, margarine, ice cream, milk fruit, yoghurt, cheese curd and whey. |
| Meat Products | Meat chunk, sauce and paste, meat ground, pet food. |
| Pharmaceutical Products | Antibiotics, Streptomycin, cough syrup, health tonic, pil paste, syrups and Extract, vitamin malt fish oil, emulsions. |
