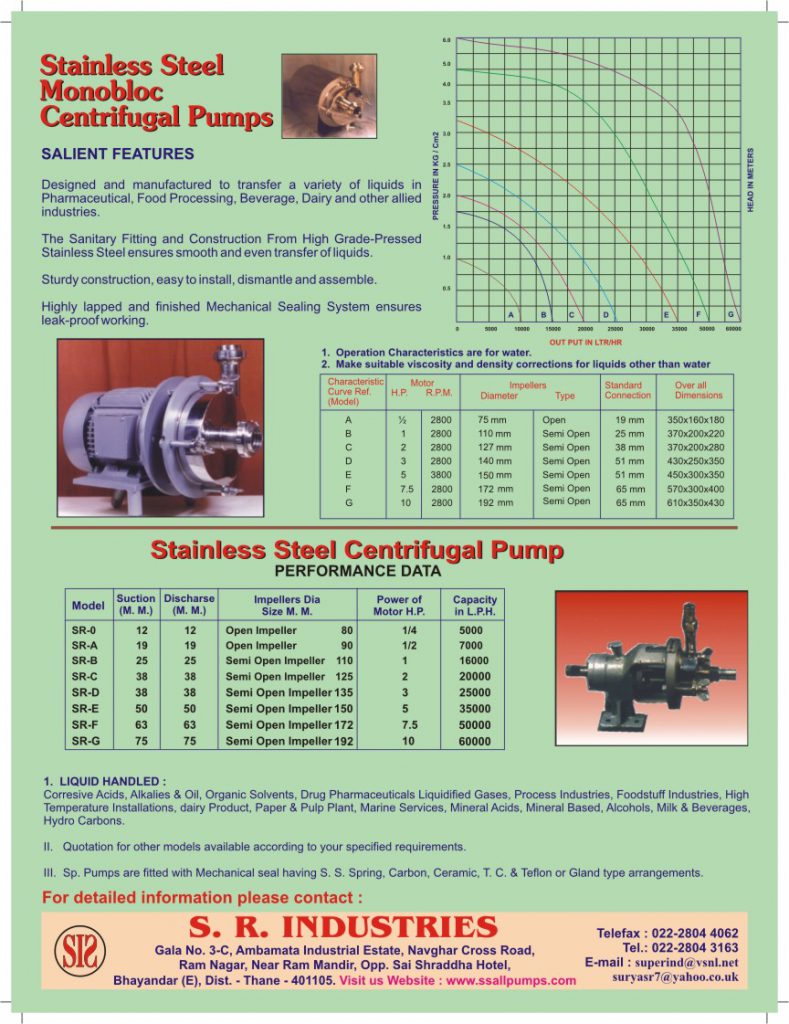

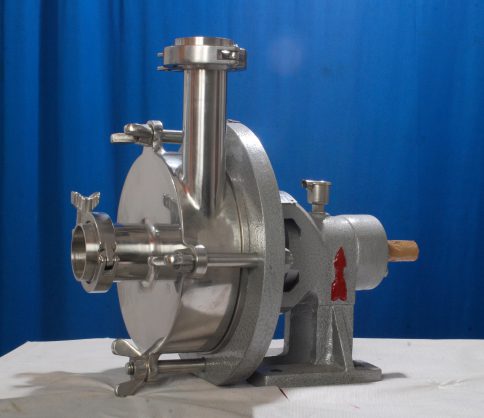

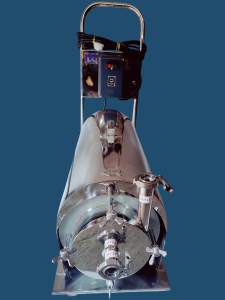

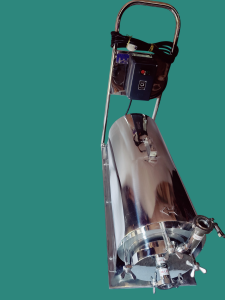

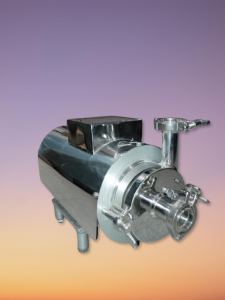

Stainless Steel Monoblock Centrifugal Pumps
SS Monoblock Pump, SS Centrifugal Pump Manufacturer, Exporter in India
Salient Features:
- Designed and manufactured to transfer a variety of liquids in Pharmaceutical, Food Processing, Beverage, Dairy and other allied industries.
- The Sanitary Fitting and Construction Form High Grade – Pressed Stainless Steel ensures smooth and even transfer of liquids.
- Sturdy construction, easy to install, dismantle and assemble.
- Highly lapped and finished Mechanical Sealing System ensures leak-proof working.
- Operation Characteristics are for water.
- Make suitable viscosity and density corrections for liquids other than water.
| Characteristics Curve Ref. (Model) | Motor | Impellers | Standard Connection | Over all Dimensions | ||
|---|---|---|---|---|---|---|
| H.P. | R.P.M. | Diameter | Type | |||
| A | 1/2 | 2800 | 80 mm | Open | 19 mm | 350 x 160 x 180 |
| B | 1 | 2800 | 110 mm | Semi Open | 25 mm | 370 x 200 x 220 |
| C | 2 | 2800 | 125 mm | Semi Open | 38 mm | 370 x 200 x 280 |
| D | 3 | 2800 | 135 mm | Semi Open | 51 mm | 430 x 250 x 350 |
| E | 5 | 2800 | 150 mm | Semi Open | 51 mm | 450 x 300 x 350 |
| F | 7.5 | 2800 | 172 mm | Semi Open | 65 mm | 570 x 300 x 400 |
| G | 10 | 2800 | 192 mm | Semi Open | 65 mm | 610 x 350 x 430 |
Stainless Steel Centrifugal Pump Performance Data
| Model | Suction | Discharge | Impellers Dia | Over all Dimensions |
|---|---|---|---|---|
| M.M. | M.M. | Size in M.M. | ||
| SR-0 | 12 | 12 | Open Impeller 80 | 1/4 |
| SR-A | 19 | 19 | Open Impeller 90 | 1/2 |
| SR-B | 25 | 25 | Semi Open Impeller 110 | 1 |
| SR-C | 38 | 38 | Semi Open Impeller 125 | 2 |
| SR-D | 38 | 38 | Semi Open Impeller 135 | 3 |
| SR-E | 50 | 50 | Semi Open Impeller 150 | 5 |
| SR-F | 63 | 63 | Semi Open Impeller 172 | 7.5 |
| SR-G | 75 | 75 | Semi Open Impeller 192 | 10 |
