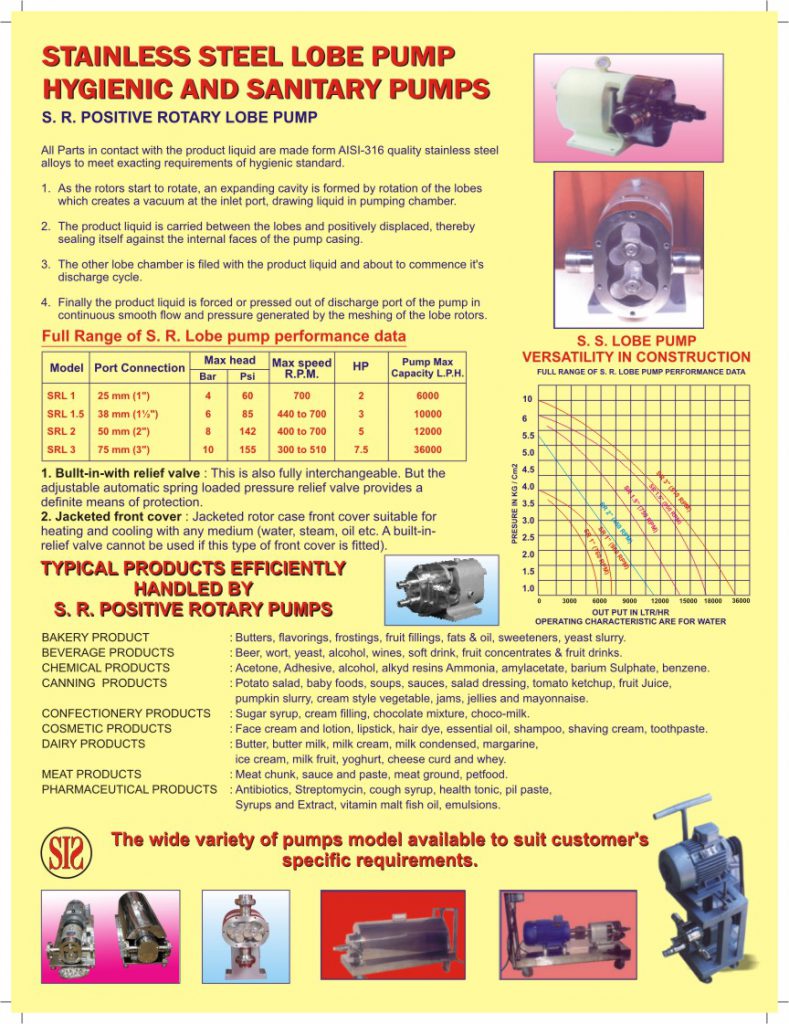

S.R. Positive Rotary Lobe Pump (trilobe)




Rotary Lobe Pump (Trilobe) Manufacturer, Exporter in India

All Parts in contact with the product liquid are made form AISI-316 quality stainless steel alloys to meet exacting requirements of hygienic standard.

  • As the rotors start to rotate, an expanding cavity is formed by rotation of the lobes which creates a vacuum at the inlet port, drawing liquid in pumping chamber
  • The product liquid is carried between the lobes and positively displaced, thereby sealing itself against the internal faces of the pump casing.
  • The other lobe chamber is filed with the product liquid and about to commence it’s discharge cycle.
  • Finally the product liquid is forced or pressed out of discharge port of the pump in continuous smooth flow and pressure generated by the meshing of the lobe rotors.
Model Port Connection Max head. Max. Speed R. P. M. H. P. Pump Max Capacity L. P. H
Bar Psi
SRL 1 25 mm (1″) 4 60 700 2 6000
SRL 1.5 38 mm (11/2″) 6 85 440 to 700 3 10000
SRL 2 50 mm (2″) 8 142 400 to 700 5 12000
SRL 3 25 mm (3″) 10 155 300 to 510 7.5 36000
  • Built – in – With relief Valve : This is also fully interchangeable. But the adjustable automatic spring loaded pressure relief valve provides a definite means of protection.

  • Jacketed front cover : Jacketed rotor case front cover suitable for heating & cooling with any medium (Water, steam, oil etc. A built-in-relief valve cannot be used if this type of front cover is fitted.)
Model Port ConnectionMax headMax Speed R.P. M.H.P.Pump Max Capacity L.P.H.
Bakery Product Butters, flavourings, frostings, fruit fillings, fats & Oil, sweeteners, yeast slurry.
Beverage Products Beer, wort, yeast, alcohol, wines, soft drink, fruit concentrates & fruit drinks.
Chemical Products Acetone, Adhesive, alcohol, alkyd resins Ammonia, amylacetate, barium Sulphate, benzene. Canning Products
Canning Products Potato salad, baby foods, soups, salad dressing, tomato ketchup, fruit juice, pumpkin slurry, cream style vegetable,jams, jellies and mayonnaise.
Confectionery Products Sugar syrup, cream filling, chocolate mixture, choco- milk
Cosmetic Products Face cream and lotion, lipstick, hair dye, essential oil, shampoo, shaving cream, toothpaste.
Dairy Products Butter, butter milk, milk cream, milk condensed, margarine, ice cream, milk fruit, yoghurt, cheese curd and whey.
Meat Products Meat chunk, sauce and paste, meat ground, pet food.
Pharmaceutical Products Antibiotics, Streptomycin, cough syrup, health tonic, pil paste, syrups and Extract, vitamin malt fish oil, emulsions.
